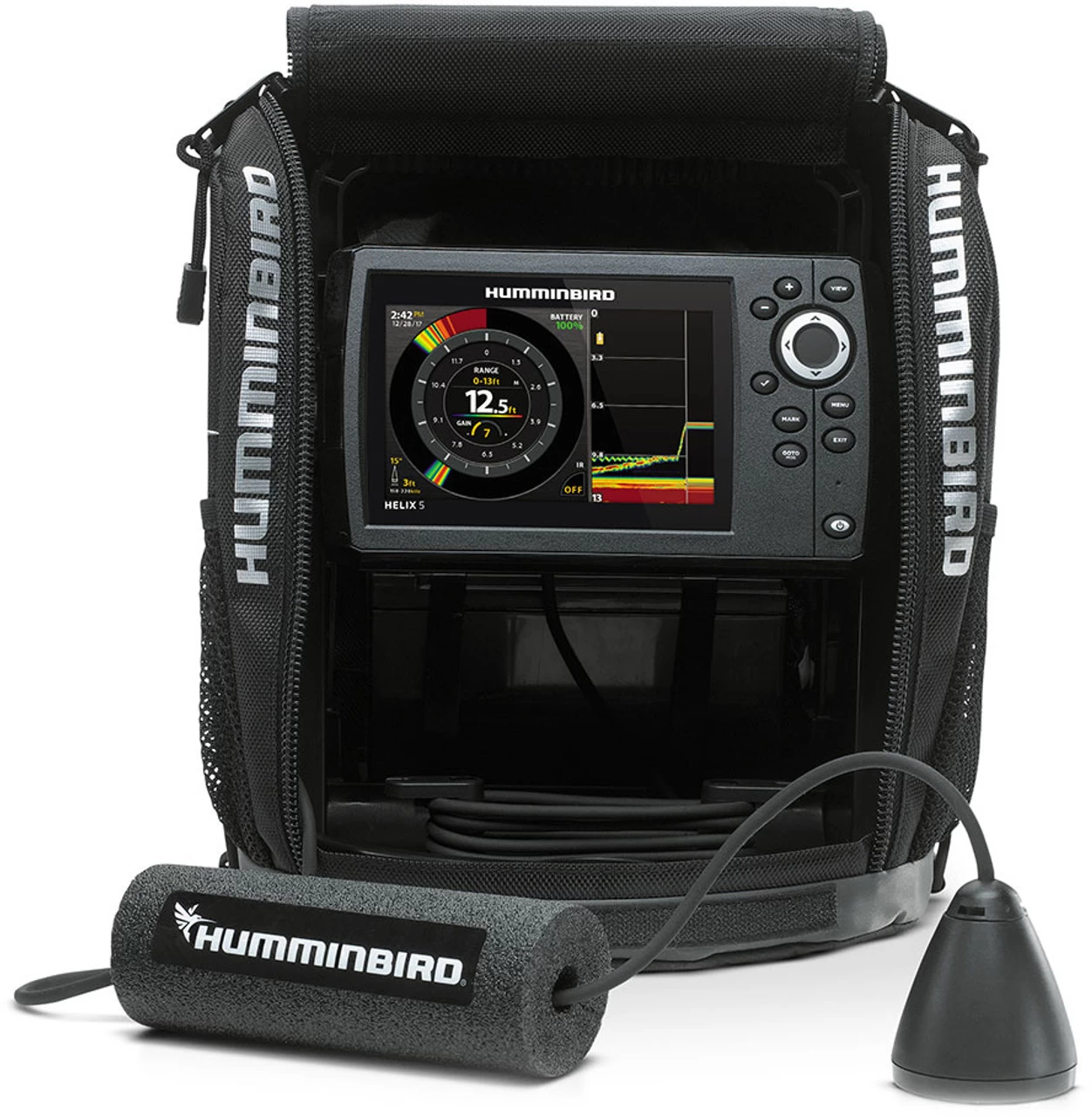

For a deeper understanding of what’s lurking below the ice, look no further than the Humminbird 410970-1 ICE HELIX 5 G2 CHIRP GPS/Sonar Combo, with exclusive features you won’t find anywhere else: crystal-clear Dual Spectrum CHIRP Digital Sonar, unprecedented viewing options specifically for the ice angler, built-in GPS with Humminbird Basemap, as well as settings for Interference Rejection. Watch it all take shape on the full color 5-inch HD LCD display. Professional-grade carrying case, battery and charger are included.

Humminbird 410970-1 ICE HELIX 5 G2 CHIRP GPS/Sonar Combo Features:

High-speed LCD: Digital read-out shows your precise depth, as well as a customizable graph view with up to 8X zoom and latency-free digital flasher.
Year-Round Capable: The ICE HELIX 5 CHIRP GPS G2 works with all compatible HELIX 5 CHIRP GPS transducers. Simply install an accessory transducer on your boat, and change your settings to “Open Water” mode.
Dual Spectrum CHIRP Digital Sonar: See details that other forms of sonar can’t show you. Humminbird Dual Spec CHIRP Digital Sonar is engineered to help you see individual fish, clearly identify structure and bait, and reach greater range and depths. Easily see your lure, fish, and activity along the bottom. Get high-resolution returns in both traditional 2D sonar and flasher views.
SwitchFire Sonar: Take command of the way your sonar returns appear. With 2 display modes, you can remove or add detail, account for temperature, water depth, and turbulence, and even watch lure presentations at the push of a button.
Interference Rejection: 6 settings prevent competing sonar signals from cluttering your screen, to provide you with a clear view all day long, in both flasher and sonar modes.
Internal Precision GPS Built-in: Remove the guesswork from finding your fishing spot. Pinpoint your location and mark waypoints of your most productive areas, so you can navigate out to your spot and back safely.
AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map bottom hardness, depth contours, and vegetation as you drive your boat, with 8 hours of built-in recording time (open-water application only).
Humminbird Basemap Built-in: Humminbird’s enhanced standard Basemap gives you a clear view of underwater terrain and surrounding points of interest so you can navigate and fish with total confidence. Identify daymarkers, buoys, hazards, depth markers, contours, marinas and more. Includes charts of more than 10,000 lakes.
Micro SD Card Reader: Single card reader slot used for advanced cartography or to save sonar recordings, screenshots, and waypoints, or update your unit’s software.
New Cable and Transducer Management: A built-in cable wrap lets you easily grab just the amount of transducer cable you need for your fishing situation. When transporting your unit, you can rest assured the transducer and 8 foot transducer cable are stored and protected.
Portable Carrying Case: Take your fishing system on the go with the soft-sided carrying case that protects your Humminbird for safe transport and conveniently fits in a five-gallon bucket.
Kit Includes: ICE HELIX 5 CHIRP GPS G2 Fish Finder, XI 9 1521 Dual Spectrum CHIRP Transducer and Cable, 9 Amp Hour Battery and Charger, Mounting Bracket and Hardware, Portable Ice Bag.

Humminbird 410970-1 ICE HELIX 5 G2 CHIRP GPS/Sonar Combo Specifications:

Series: ICE
Display Size – Diagonal: 5″
Display Pixel Matrix: 800H x 480V
Sonar-Standard: Dual Spectrum CHIRP
Sonar-Coverage: 15° & 21° @ -3dB
Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
CHIRP – Frequencies Supported: 83/200 (75-155/130-250 kHz), 50/200 (28-75/130-250 kHz), High (130-250 kHz), Low (28-75 kHz), Med (75-155 kHz)
Sonar-Frequencies Supported: 50/83/200 kHz
Depth-Sonar: 400′
Interface: Keypad Control
Features: Built In GPS, Built In Mapping, CHIRP Digital Sonar, Portable
Memory Card Slot: Single Micro SD
Power Draw: 600 mA
Power Input: 10.8-20 VDC
Power Output Peak-to-Peak: 4000 Watts
Power Output RMS: 500 Watts
Screen Snap Shot: Included
Sonar Recording: Included
Mount-Standard: Portable
Transducer Included: XI 9 1521
Transducer Mount Location: Portable
GPS Chartplotting: Included
GPS Receiver: Internal
GPS Trackplotting: Included
Waypoints, Routes, Tracks/Points: 2,750, 47, 50/20,000
Humminbird Basemap: Optional
LakeMaster Compatibility: Yes
Navionics Gold/HotMaps Compatibility: Yes
Platinum Compatibility: Yes
Navionics Platinum + Compatibility: Yes
Heading Sensor GPS Compatibility: Yes
Target Separation: 1.5″
Interference Rejection: 6 Modes
Battery Included: 12V 9 Amp Hours
Gain: 20 Steps
Upgradable Software: Yes
View Preset Keys: No
X-Press Menu System: Yes
Custom Digital Readout: Yes
Custom View Selections: Yes
Display Colors Grayscale: 256 Color
Display Type: Color TFT
Speed: Included
Temperature: Built In
Temperature Alarm: Yes
Temperature Graph: No
